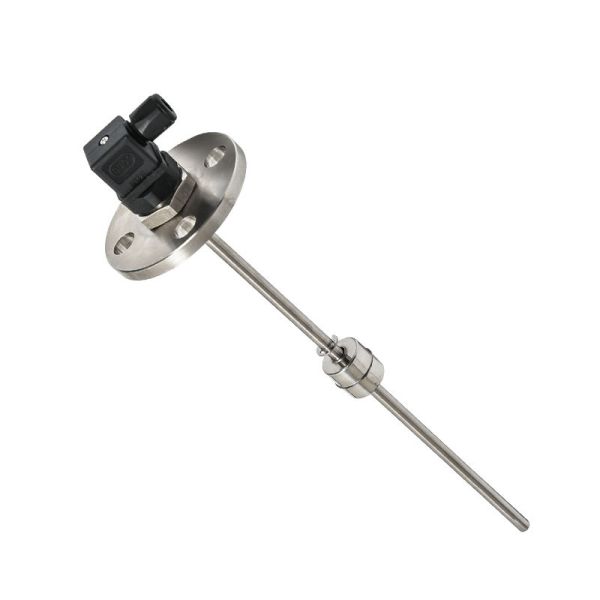

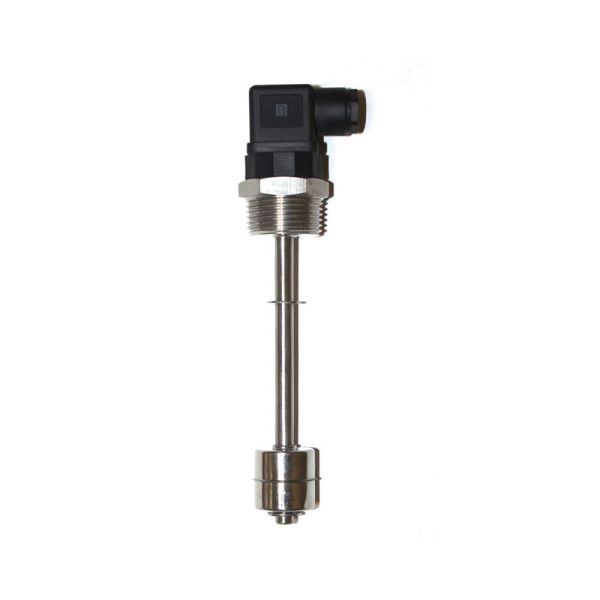

High Temperature Resistance 304 Stainless Steel Float Switch OEM ODM Hessman Connector Level Level Measuring Instruments

Name: High Temperature Resistance 304 Stainless Steel Float Switch OEM ODM Hessman Connector Level Level Measuring Instruments
Brand: bairui
Price: 1 USD

Wholesale High Temperature Resistance 304 Stainless Steel Float Switch OEM ODM Hessman Connector Level Level Measuring Instruments from china suppliers

Model Number : FQKG

Place of Origin : Shaanxi, China

Brand Name : bairui

MOQ : 5 pieces

Price : Negotiable

Series : Single float ball

Mounting Type : Threaded flange

Description : Liquid level switch, FQKG

Manufacturing Date Code : 2025

Type : Liquid Level Sensor

Usage : Control the liquid level

Theory : Switch

Output : Switch

Power Source : 24V,220V

Switch Actuation Level : 50-800mm

Supply voltage : AC 30-260V DC 12-260V

Induction mode : Magnetic induction

Installation mode : Screw thread

Length : 50-800mm

Product name : Float switch

Output signal : NO or NC

material : su 304

Scope of work : 3-5mm

Application : Water tank, industrial water tower, aquaculture water pool

Contact Now

Products Description

item	value
Customized support	OEM, ODM
Place of Origin	Shaanxi China
Brand Name	bairui
Model Number	FQKG

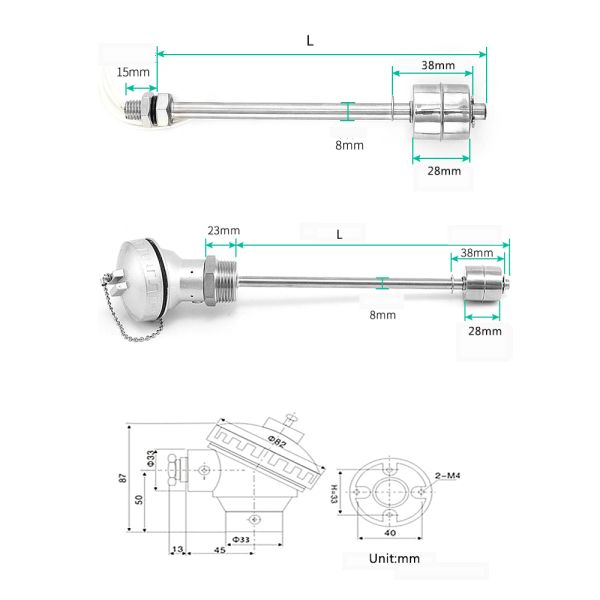

Length	0-800mm
Installation mode	Hesman /Flange/Junction box
Contact capacity	Contact current 1A，2A
Supply voltage	AC 12-260V ， AC30-260V
Material:	Stainless steel
Medium temperature	-20~120℃
Applicable medial	water and oil
Diameter of guide rod	8mm
Protection	IP65

Water level sensor is widely used in water/oil tank level auto control systems, to detect the liquid levels to start up and shut
down the water pump or electric valve on the basis of liquid level, or output switching signal to other signal acquisition module.
