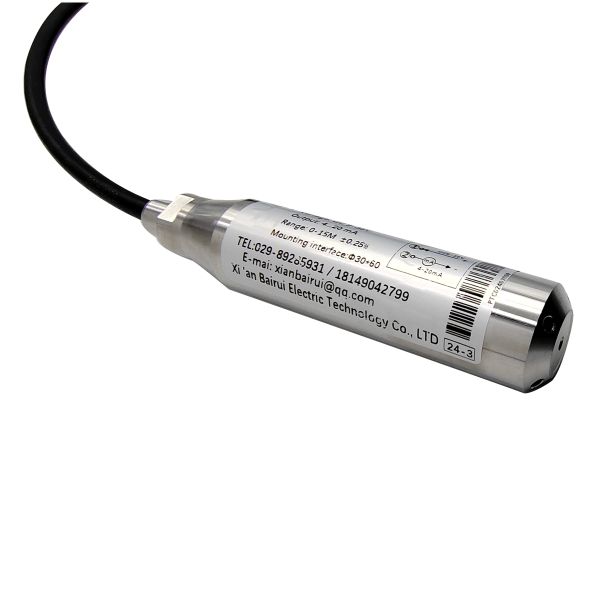

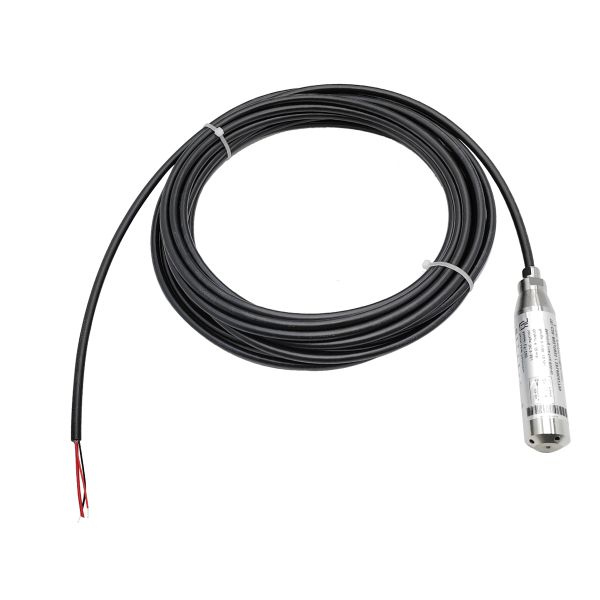

4-20mA Signal Water Level Gauge Sensor Level Transmitter for Well Sewage Treatment Plant Dam Level Measuring Instruments

Name: 420mA Signal Water Level Gauge Sensor Level Transmitter for Well Sewage Treatment Plant Dam Level Measuring Instruments
Brand: bairui
Price: 1 USD

Wholesale 4-20mA Signal Water Level Gauge Sensor Level Transmitter for Well Sewage Treatment Plant Dam Level Measuring Instruments from china suppliers

Brand Name : bairui

Place of Origin : Shaanxi, China

MOQ : 5 piece

Price : Negotiable

Payment Terms : D/A,L/C,D/P,T/T

Delivery Time : 3-5days

customized support : OEM, ODM

material : 304, su 304

warranty : Other

Supply voltage : AC 30-260V DC 12-260V

Induction mode : Magnetic induction

Installation mode : Screw thread

Length : 0-800mm

Product name : Float switch

Output signal : NO or NC

Scope of work : 3-5mm

Mode : Magnetic induction

Grade : Water supply,Environmental protection

Contact Now

4-20mA Signal Water Level Gauge Sensor Level Transmitter for Well Sewage Treatment Plant Dam Level Measuring Instruments

Products Description

Model	LS-3RL
Pressure Range:	-1-5Bar 0-50 Bar Optional
Measuring depth	0-150m
Overload:	150% F.S.
Burst Pressure	300% F.S.
Accuracy:(Linearity Hysteresis Repeatability）	≤+0.5%F.S; ≤+0.25%F.S; ≤+0.15%F.S Including non-lin., rep. and hys. Optional
Long Stability:	Standard: 0.1%F.S±0.05%/Year	Max: 0.15%F.S±0.05%/Year
Working Temp:	’-10℃~70℃
Storage Temp:	·-20℃~70℃
Outer shell material	Compatible with 316 Stainless Steel or Titanium Alloy or PTFE materials.
Output:	4-20 mA or 4-20mA +HART (2 wires)	0-5V/0.5-4.5V/1-5V/0-10V/0-2.5V.... (3 wires)	RS485(4 wires)	RS485+4-20mA(6 wires)
Power Supply:	12~ 36 Vdc	12~ 30Vdc/5Vdc/12Vdc	10~ 30 Vdc	12~30Vdc
Insulate resistance:	>100MQ @50V dc
Zero Temp. Drift:	Typical: 0.05%FS/℃	Max: 0.1%FS/℃
Electronic connection:	Fixed cable and water proof IP68
Mounting Type:	Input type
Response time:	≤1ms
Pressure Type:	Gauge pressure
Water Proof:	IP68
Temperature Range:	-30 to 70 Degree C (by customized)
Weight:	Net weight is about 0.30KG, Full Packing weight is about 0.5KG (Not Include Cable)
Origin and brand
place of origin	Shaanxi, China
brand	Bairui
Packaging and delivery
Port	Shenzhen Port / Xi'an Port
