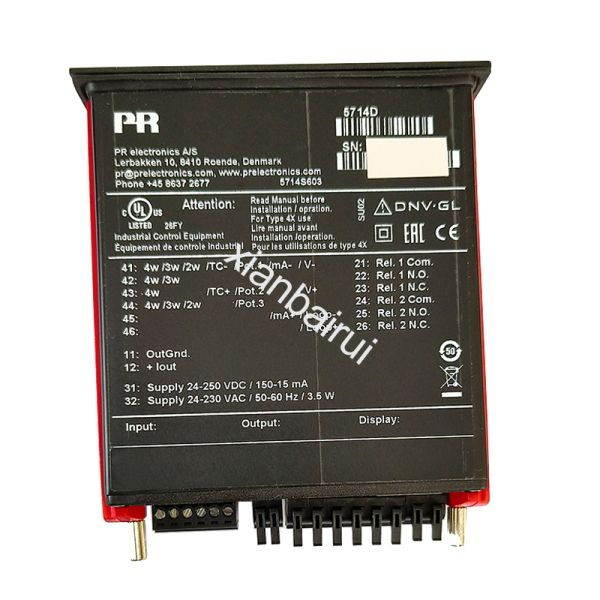

PR electronics 5714A 5714B 5714C 5714D mA or V or potentiometer or Ohm or RTD and TC input

Model Number : 5714

Place of Origin : Shaanxi, China

Brand Name : Bairui Electric

MOQ : 5 pieces

Price : Negotiable

Payment Terms : T/T

Series : Multifunctional digital display table

Features : Multifunctional digital display table

Mounting Type : Open mounting

Description : Multifunctional digital display table, Multifunctional digital display table

Type : Temperature Sensor

Usage : PID digital display table

Theory : Temperature control meter

Output : 0...23 mA / 16 mA

Termination Style : Screw Terminal

Contact Now

PR electronics 5714A 5714B 5714C 5714D Multifunctional Digital Display Table

Product Overview

The PR electronics 5714 series is a versatile multifunctional digital display table designed for industrial applications. With multiple input options and robust construction, it provides reliable measurement and control capabilities.

Technical Specifications
Installation Mode Open mounting
Model Numbers 5714A, 5714B, 5714C, 5714D
Origin Denmark
Brand PR electronics
Feature PID digital display table
mA Measuring Range 0...23 mA / 16 mA minimum range
Voltage Measuring Range 0...12 VDC / 0.8 V minimum range
RTD Measuring Range -200...+850°C
Linear Resistance Range 0...10000 Ω
Potentiometer Range 10 Ω...100 kΩ
Sensor Connections RTD 2-wire, 3-wire, 4-wire
TC Type BEJKLNRSTUW3W5Lr
Cold-end Compensation Internal
Reference Voltage / 2-wire Power Supply - / > 15 VDC
Display Type 4-bit LED
Display Height 13.8 mm
Relay 2 x SPDT, AC: 500 VA
Ambient Temperature -20...+60°C
Supply Voltage 21.6...253 V AC / 19.2...300 V DC
Maximum Power Consumption 3.5W
Isolation Voltage 2.3 kVAC test / 250 VAC working
Response Time < 400 ms / < 1 s
Precision < ±0.1% measurement value
Temperature Coefficient < ±0.01% measurement value / °C
NAMUR NE43
Parameter Setting Panel button
Structural Dimensions 48 x 96 x 120 mm
Opening Size 44.5 x 91.5 mm
Application Industry Industry and ship
